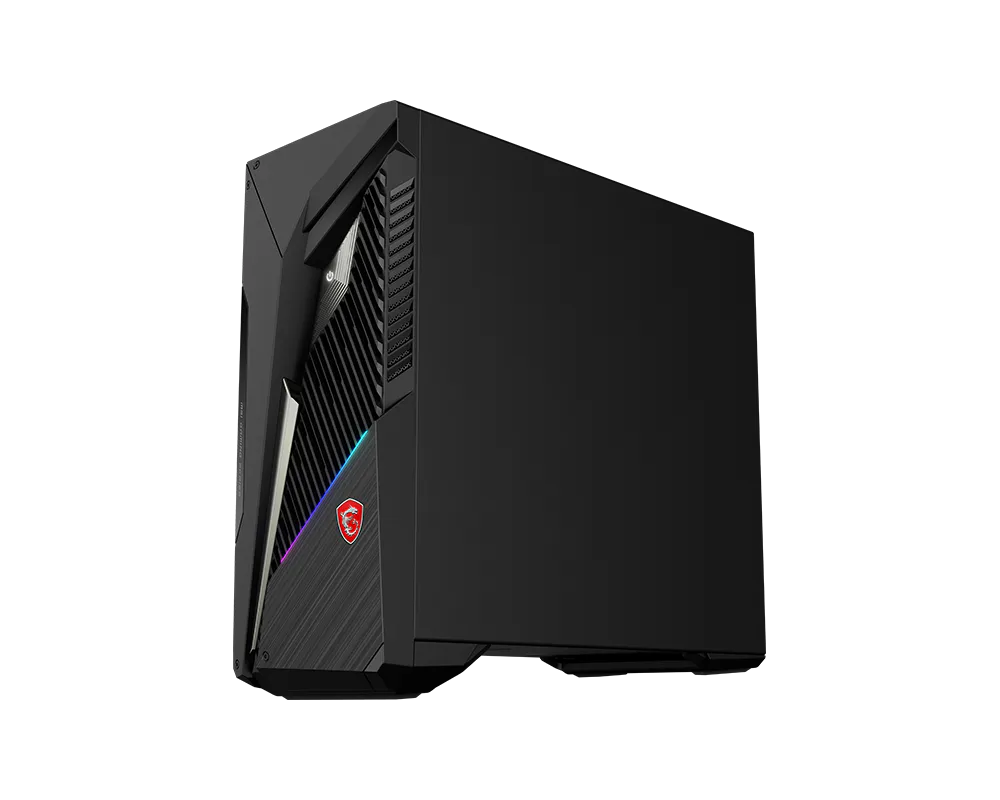

MAG Infinite S3 14th
| Differences are marked in red |
MAG Infinite S3 14NUC5-1679ID
|
MAG Infinite S3 14NUE7-1680ID
|
MAG Infinite S3 14NUE7-1887ID
|
MAG Infinite S3 14NUC5-2032ID
|
| Operating Systems | Windows 11 Home | Windows 11 Home | Windows 11 Home | Windows 11 Home |
|---|---|---|---|---|
| Part No | 9S6-B93851-1679 | 9S6-B93851-1680 | 9S6-B93851-2025 | 9S6-B93851-2032 |
| MKT Name | MAG Infinite S3 14NUC5 | MAG Infinite S3 14NUE7 | MAG Infinite S3 14NUE7 | MAG Infinite S3 14NUC5 |
| MKT Spec | MAG Infinite S3 14NUC5-1679ID | MAG Infinite S3 14NUE7-1680ID | MAG Infinite S3 14NUE7-1887ID | MAG Infinite S3 14NUC5-2032ID |
| Color | ID1/Black-Black-Black | ID1/Black-Black-Black | ID1/Black-Black-Black | ID1/Black-Black-Black |
| Chipsets | H610 | H610 | H610 | H610 |
| Memory | Memory Size 16GB(16GB*1)Memory Type DDR5 SDRAMModule Type U-DIMMMemory Slot(Total) 2Memory Slot(Free) 1Max Capacity Max 64GB | Memory Size 32GB(16GB*2)Memory Type DDR5 SDRAMModule Type U-DIMMMemory Slot(Total) 2Memory Slot(Free) 0Max Capacity Max 64GB | Memory Size 32GB(16GB*2)Memory Type DDR5 SDRAMModule Type U-DIMMMemory Slot(Total) 2Memory Slot(Free) 0Max Capacity Max 64GB | Memory Size 16GB(16GB*1)Memory Type DDR5 SDRAMModule Type U-DIMMMemory Slot(Total) 2Memory Slot(Free) 1Max Capacity Max 64GB |
| CPU Number | Intel Core i5 Processor 14400F | Intel Core i7 Processor 14700F | Intel Core i7 Processor 14700F | Intel Core i5 Processor 14400F |
| CPU Clock | 2.5GHz | 2.1GHz | 2.1GHz | 2.5GHz |
| CPU Cores | 10 | 20 | 20 | 10 |
| TDP | 65W | 65W | 65W | 65W |
| Cache | 20 MB Intel® Smart Cache | 33 MB Intel® Smart Cache | 33 MB Intel® Smart Cache | 20 MB Intel® Smart Cache |
| Threads | 16 | 28 | 28 | 16 |
| Discrete Graphics | HDMIx1, Display Portx3, GeForce RTX 4060 VENTUS 2X BLACK 8G OC, 8G | HDMIx1, Display Portx3, GeForce RTX 4070 SUPER 12G VENTUS 2X OC, 12G | HDMIx1, Display Portx3, GeForce RTX 4070 SUPER 12G VENTUS 2X OC, 12G | HDMIx1, Display Portx3, GeForce RTX 4060 VENTUS 2X BLACK 8G OC, 8G |
| Audio | Realtek ALC897, 7.1 Channel HD Audio | Realtek ALC897, 7.1 Channel HD Audio | Realtek ALC897, 7.1 Channel HD Audio | Realtek ALC897, 7.1 Channel HD Audio |
| Storage | SSD Size 1TB(1TB*1) SSD Form Factor M.2-2280 M-KEYM.2 slots(Total) 1M.2 slots(Free) 03.5" Drive Bays(Total) 13.5" Drive Bays(Free) 12.5" Drive Bays(Total) 22.5" Drive Bays (Free) 2 | SSD Size 1TB(1TB*1) SSD Form Factor M.2-2280 M-KEYM.2 slots(Total) 1M.2 slots(Free) 03.5" Drive Bays(Total) 13.5" Drive Bays(Free) 12.5" Drive Bays(Total) 22.5" Drive Bays (Free) 2 | SSD Size 1TB(1TB*1) SSD Form Factor M.2-2280 M-KEYM.2 slots(Total) 1M.2 slots(Free) 03.5" Drive Bays(Total) 13.5" Drive Bays(Free) 12.5" Drive Bays(Total) 22.5" Drive Bays (Free) 2 | SSD Size 1TB(1TB*1) SSD Form Factor M.2-2280 M-KEYM.2 slots(Total) 1M.2 slots(Free) 03.5" Drive Bays(Total) 13.5" Drive Bays(Free) 12.5" Drive Bays(Total) 22.5" Drive Bays (Free) 2 |
| SSD Interface | PCIe GEN3x4 | PCIe GEN3x4 | PCIe GEN3x4 | PCIe GEN3x4 |
| LAN | Intel I219-V | Intel I219-V | Intel I219-V | Intel I219-V |
| I/O Ports (Front) |
1 x USB 3.2 Gen 1 Type A 1 x USB 3.2 Gen 1 Type C |
1 x USB 3.2 Gen 1 Type A 1 x USB 3.2 Gen 1 Type C |
1 x USB 3.2 Gen 1 Type A 1 x USB 3.2 Gen 1 Type C |
1 x USB 3.2 Gen 1 Type A 1 x USB 3.2 Gen 1 Type C |
| Audio Mic-in | 1 | 1 | 1 | 1 |
| Audio Headphone-out | 1 | 1 | 1 | 1 |
| I/O Ports (Rear) |
2 x USB 3.2 Gen 1 Type A (R) |
2 x USB 3.2 Gen 1 Type A (R) |
2 x USB 3.2 Gen 1 Type A (R) |
2 x USB 3.2 Gen 1 Type A (R) |
| USB 2.0 Type A (R) | 4 | 4 | 4 | 4 |
| RJ45 | 1 | 1 | 1 | 1 |
| WiFi Antenna | 2 | 2 | 2 | 2 |
| DP out | 1x (v1.4) | 1x (v1.4) | 1x (v1.4) | 1x (v1.4) |
| PS/2 | 1 | 1 | 1 | 1 |
| Audio jack | 3 | 3 | 3 | 3 |
| Product Dimension (WxDxH) (mm) | 173.8 x 446.97 x 407.17 | 173.8 x 446.97 x 407.17 | 173.8 x 446.97 x 407.17 | 173.8 x 446.97 x 407.17 |
| Product Dimension (WxDxH) (inch) | 6.84 x 17.6 x 16.03 | 6.84 x 17.6 x 16.03 | 6.84 x 17.6 x 16.03 | 6.84 x 17.6 x 16.03 |
| Outer Carton Dimension Standard (WxDxH) (mm) | 585 x 317 x 510 | 585 x 317 x 510 | 585 x 317 x 510 | 585 x 317 x 510 |
| Outer Carton Dimension Standard (WxDxH) (inch) | 23.03 x 12.48 x 20.08 | 23.03 x 12.48 x 20.08 | 23.03 x 12.48 x 20.08 | 23.03 x 12.48 x 20.08 |
| Weight (Net kg) | 7.73 | 7.73 | 7.73 | 7.73 |
| Net Weight (lbs) | 17.04 | 17.04 | 17.04 | 17.04 |
| Weight (Gross kg) | 10.44 | 10.44 | 10.44 | 10.44 |
| Gross Weight (lbs) | 23.02 | 23.02 | 23.02 | 23.02 |
| Liter | 32 | 32 | 32 | 32 |
| Pint | 67.63 | 67.63 | 67.63 | 67.63 |
| Power | 500W, 80PLUS BRONZE, ATX, POWER SUPPLY | 500W, 80PLUS BRONZE, ATX, POWER SUPPLY | 500W, 80PLUS BRONZE, ATX, POWER SUPPLY | 500W, 80PLUS BRONZE, ATX, POWER SUPPLY |
| USB 3.2 Gen 1 (5G) Type C | 1 | 1 | 1 | 1 |
| USB 3.2 Gen 1 (5G) Type A | 1 | 1 | 1 | 1 |
| USB 3.2 Gen 1 (5G) Type A (R) | 2 | 2 | 2 | 2 |
| Operating, Storage Temperature | 0° C ~ 35° C ; -20° C ~ 60° C | 0° C ~ 35° C ; -20° C ~ 60° C | 0° C ~ 35° C ; -20° C ~ 60° C | 0° C ~ 35° C ; -20° C ~ 60° C |
| Operating, Storage Humidity | 0% ~ 85%;0% ~ 90% | 0% ~ 85%;0% ~ 90% | 0% ~ 85%;0% ~ 90% | 0% ~ 85%;0% ~ 90% |
| Regulatory Compliance | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) |
| Keyboard Interface | USB | USB | USB | USB |
| Mouse Interface | USB | USB | USB | USB |
| Power Cord | 1 | 1 | 1 | 1 |
| Warranty Card | 1 | 1 | 1 | 1 |
| Quick Guide | 1 | 1 | 1 | 1 |
| User Manual | 1 | 1 | 1 | 1 |
| Keyboard | Vigor GK30 US | Vigor GK30 US | Vigor GK30 US | Vigor GK30 US |
| Mouse | CLUTCH GM11 | CLUTCH GM11 | CLUTCH GM11 | CLUTCH GM11 |
| EAN | 4711377200028 | 4711377200035 | 4711377229975 | 4711377232814 |
