Specifications for

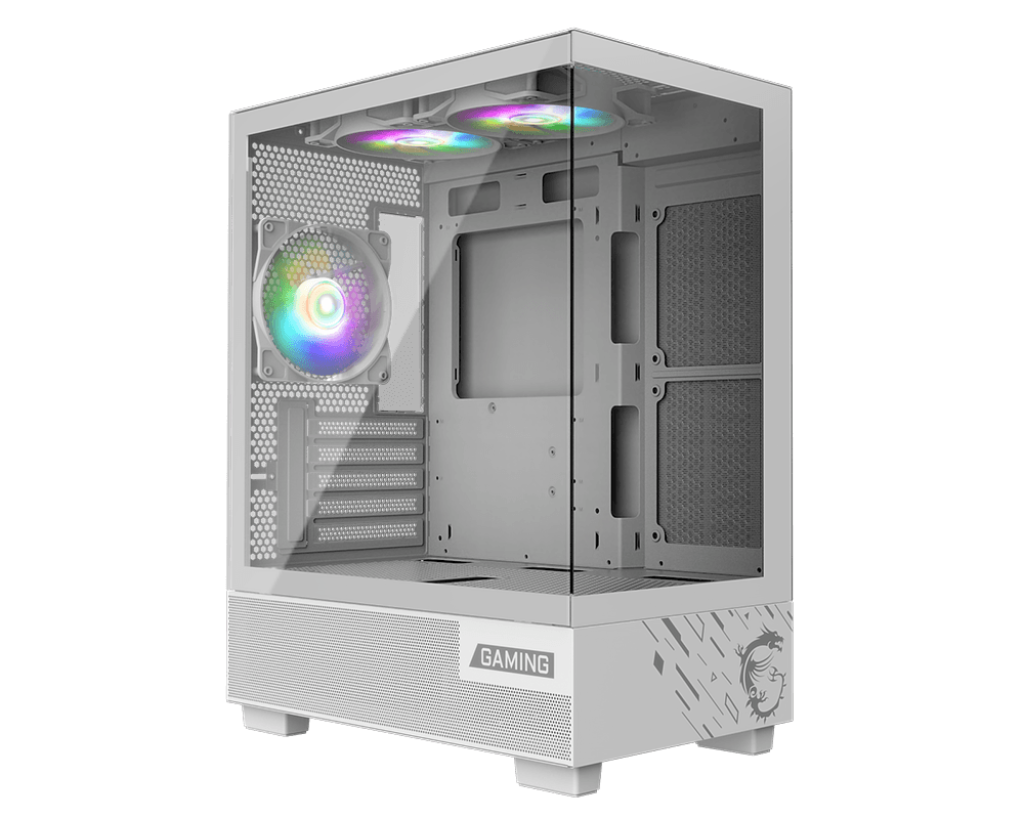

PAG PANO M110A
Form Factor
Form Factor
Mid Tower
Product Name
Product Name
PAG PANO M110A
Drive Bays
Drive Bays
1 x 2.5“
2 x 3.5“
2 x 3.5“
Dimension
Dimension
369(D) x 210(W) x 448(H) mm / 14.52 x 8.26 x 17.63 inches
Weight
Weight
N/A kg / N/A lbs (TBD)
I/O Ports
I/O Ports
1 x USB 5Gbs (Type-A)
1 x USB (Type-A)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button
1 x USB (Type-A)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button
Fan Size Support
Fan Size Support
Rear: 1 x 120 mm
Top: 2 x 120 mm / 2 x 140 mm
Side: 2 x 120 mm
Bottom: 2 x 120 mm
Top: 2 x 120 mm / 2 x 140 mm
Side: 2 x 120 mm
Bottom: 2 x 120 mm
Pre-install Fan
Pre-install Fan
Top: 2 x 120 mm
Rear: 1 x 120 mm
Rear: 1 x 120 mm
Case Expansion Slots
Case Expansion Slots
5
Maximum PSU Length
Maximum PSU Length
160 mm / 6.29 inches
Maximum GPU Length
Maximum GPU Length
330 mm / 12.99 inches
Radiator Layout
Radiator Layout
Rear: 120 mm
Top: 120 / 240 mm
Top: 120 / 240 mm
Maximum CPU Cooler Length
Maximum CPU Cooler Length
160 mm / 6.29 inches
Radiator Compatibility
Radiator Compatibility
120 / 140 / 240 mm
Lightning
Lightning
Top: 2 x Auto RGB Fan
Rear: 1 x Auto RGB Fan
Rear: 1 x Auto RGB Fan
Power Supply
Power Supply
ATX
Gross Weight
Gross Weight
N/A kg / N/A lbs (TBD)
