Specifications for

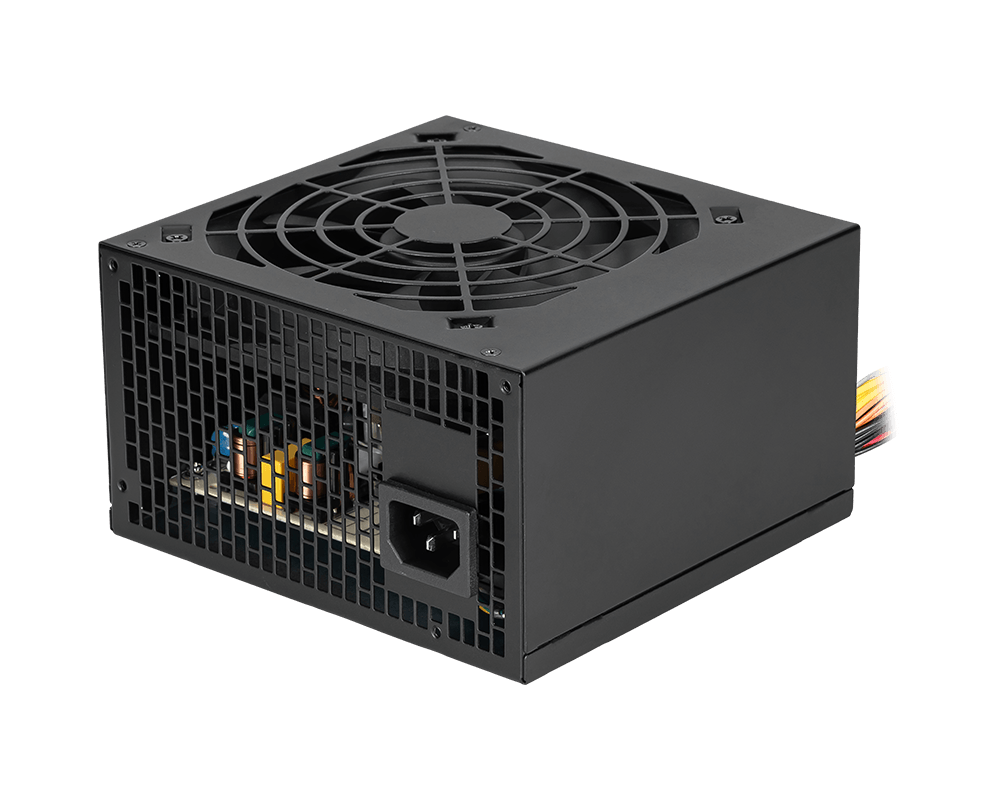

MAG A300N-H
Modular
Modular
No
Fan Size
Fan Size
120 mm
Fan Bearing
Fan Bearing
Hydraulic Bearing
Dimensions (DxWxH)
Dimensions (DxWxH)
150mm x 140mm x 86mm / 5.91 x 5.51 x 3.39 inches
PFC Type
PFC Type
Active PFC
Input Voltage Range
Input Voltage Range
200-240~
Power Watt
Power Watt
300W
Input Frequency Range
Input Frequency Range
50-60Hz
Protection
Protection
OVP, OPP, SCP, UVP
ATX (24 pin)
ATX (24 pin)
1
EPS (4+4 pin)
EPS (4+4 pin)
1
PCI-E (6+2 pin)
PCI-E (6+2 pin)
1
SATA (15 pin)
SATA (15 pin)
3
MOLEX (4 pin)
MOLEX (4 pin)
1
