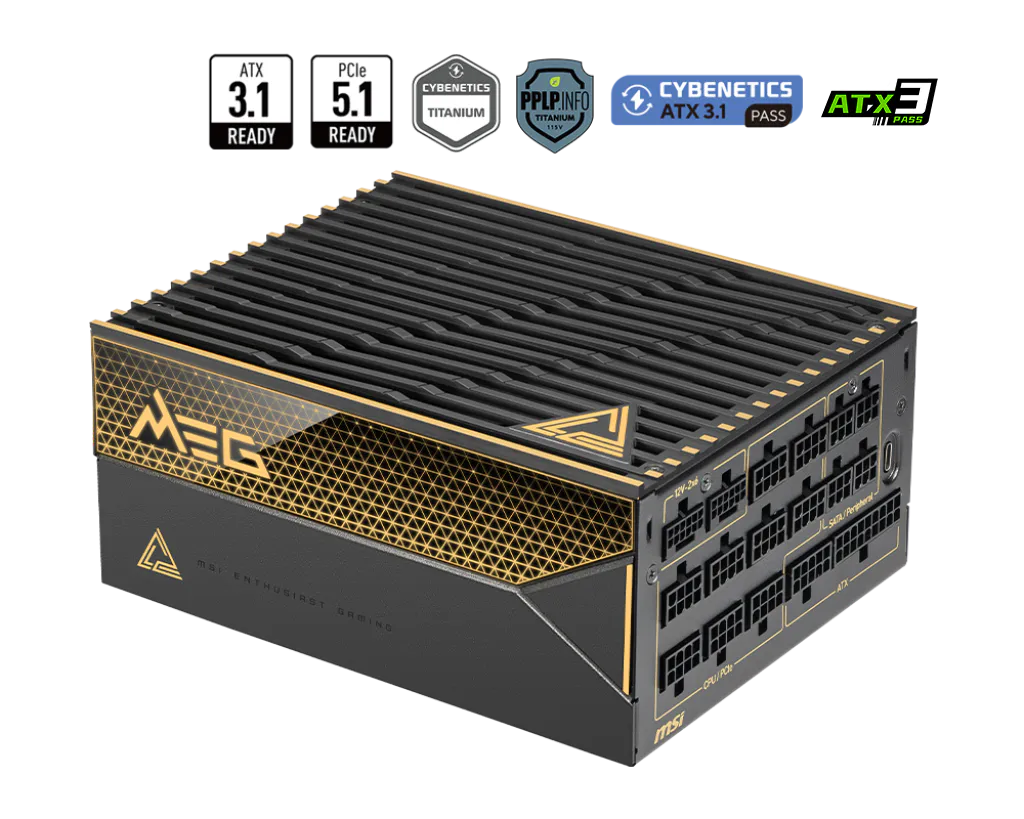

MEG Ai1600T PCIE5

WEIGHT (CARD)
Efficiency Rating
Modular
Dimensions
Fan Size
Fan Bearing
Dimensions (DxWxH)
Bearing Type
PFC Type
Rated Speed
Power Watt
Input Voltage Range
Power Excursion
Air Flow
Input Frequency Range
Static Air Pressure
Protection
ATX (24 pin)
Connector
Life Expectancy
EPS (4+4 pin)
PCI-E 5.1 (16 pin)
PCI-E (6+2 pin)
SATA (15 pin)
MOLEX (4 pin)

WEIGHT (CARD)

169g

Efficiency Rating

80 PLUS Titanium (up to 94%)

Modular

Yes (Fully Modular)

Dimensions

120mm x 120mm x 25.6mm

Fan Size

135 mm

Fan Bearing

Double Ball Bearing

Dimensions (DxWxH)

190 x 150 x 86 mm

Bearing Type

Hydro-Dynamic Bearing

PFC Type

Interleaved PFC

Rated Speed

500 - 1800 ±15% RPM

Power Watt

1600W

Input Voltage Range

100-240

Power Excursion

3840W (*up to 240% of the PSU's rated power for 100μs)

Air Flow

19.79 - 71.27 CFM

Input Frequency Range

50~60 Hz

Static Air Pressure

0.16 - 2.09 mm-H20

Protection

OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO

ATX (24 pin)

Connector

4-Pin PWM/DC

Life Expectancy

MTTF 150,000 Hours (25℃)

EPS (4+4 pin)

PCI-E 5.1 (16 pin)

2 (600W)

PCI-E (6+2 pin)

SATA (15 pin)

MOLEX (4 pin)

Semua gambar dan deskripsi hanya sebagai ilustrasi saja. Spesifikasi poduk, fungsi, dan tampilan dapat berbeda bedasar CPU dan Chipset yang berbeda. Untuk spesifikasi yang lebih detil, silahkan periksa halaman spesifikasi produk.
