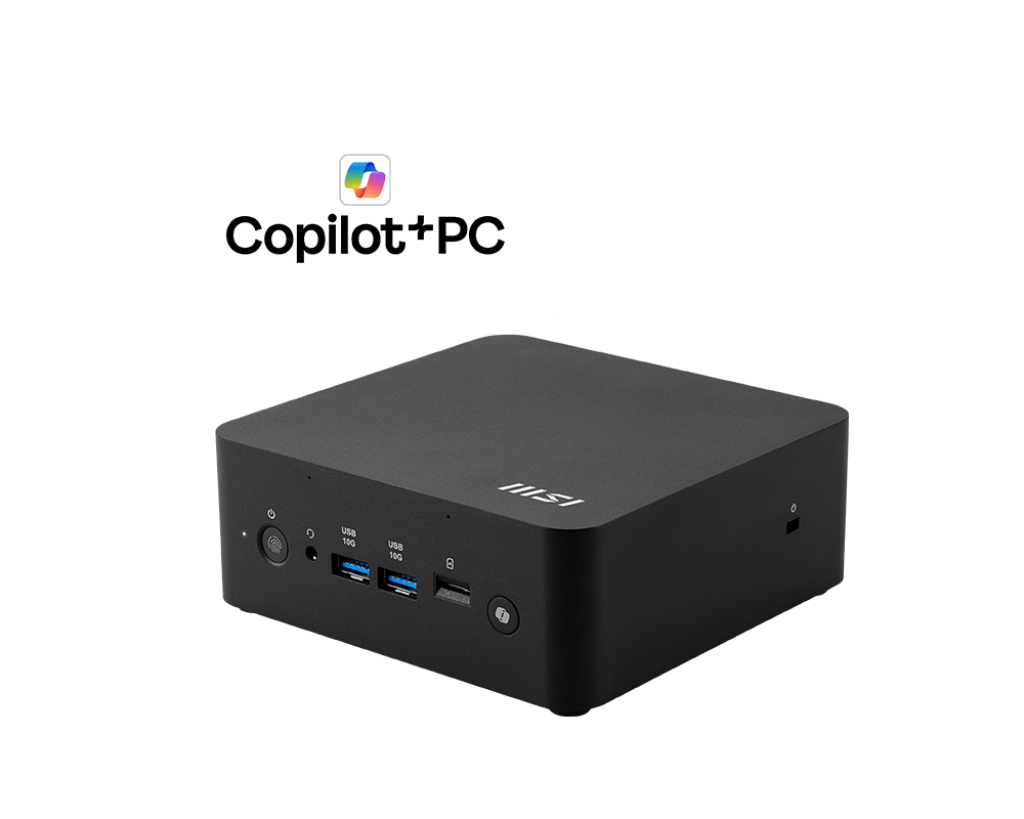

Cubi NUC AI+ 2MG ; Copilot+ PC
| Show the Differences |
Cubi NUC AI+ 2MG-013BID
Copilot+ PC
|
Cubi NUC AI+ 2MG-014BID
Copilot+ PC
|
Cubi NUC AI+ 2MG-015BID
Copilot+ PC
|
Cubi NUC AI+ 2MG-010BID
Copilot+ PC
|
Cubi NUC AI+ 2MG-011BID
Copilot+ PC
|
Cubi NUC AI+ 2MG-012BID
Copilot+ PC
|
| Operating Systems | N/A | N/A | N/A | - | - | - |
|---|---|---|---|---|---|---|
| CPU Number | Intel Core Ultra 9 processor 288V | Intel Core Ultra 7 processor 258V | Intel Core Ultra 5 processor 226V | Intel Core Ultra 9 processor 288V | Intel Core Ultra 7 processor 258V | Intel Core Ultra 5 processor 226V |
| Part No | 936-B20611-013 | 936-B20611-014 | 936-B20611-015 | 936-B20611-010 | 936-B20611-011 | 936-B20611-012 |
| CPU Clock | 3.3GHz | 2.2GHz | 2.1GHz | 3.3GHz | 2.2GHz | 2.1GHz |
| MKT Name | Cubi NUC AI+ 2MG | Cubi NUC AI+ 2MG | Cubi NUC AI+ 2MG | Cubi NUC AI+ 2MG | Cubi NUC AI+ 2MG | Cubi NUC AI+ 2MG |
| CPU Cores | 8 | 8 | 8 | 8 | 8 | 8 |
| MKT Spec | Cubi NUC AI+ 2MG-013BID | Cubi NUC AI+ 2MG-014BID | Cubi NUC AI+ 2MG-015BID | Cubi NUC AI+ 2MG-010BID | Cubi NUC AI+ 2MG-011BID | Cubi NUC AI+ 2MG-012BID |
| TDP | 30W | 17W | 17W | 30W | 17W | 17W |
| Color | ID1/Black-Black-Black | ID1/Black-Black-Black | ID1/Black-Black-Black | ID1/Black-Black-Black | ID1/Black-Black-Black | ID1/Black-Black-Black |
| Cache | 12 MB Intel® Smart Cache | - | 8 MB Intel® Smart Cache | 12 MB Intel® Smart Cache | - | 8 MB Intel® Smart Cache |
| Threads | 8 | - | 8 | 8 | - | 8 |
| Chipsets | Soc | Soc | Soc | Soc | Soc | Soc |
| Memory Size | - | - | - | 32GB | 32GB | 16GB |
| Max Turbo Frequency | up to 4.80 GHz | - | up to 4.50 GHz | up to 4.80 GHz | - | up to 4.50 GHz |
| CPU Cooler | Air cooling | Air cooling | Air cooling | - | - | - |
| Platform TOPS | Up to 120 | Up to 120 | Up to 120 | - | - | - |
| Module Type | - | - | - | Memory on Package (MOP) | Memory on Package (MOP) | Memory on Package (MOP) |
| NPU TOPS | Up to 48 | Up to 48 | Up to 48 | - | - | - |
| Memory Slot(Free) | - | - | - | 0 | 0 | 0 |
| Max Capacity | - | - | - | Max 32GB | Max 32GB | Max 32GB |
| Memory |
Memory Size 32GB Module Type Memory on Package (MOP) Memory Slot(Free) 0 Max Capacity Max 32GB |
Memory Size 32GB Module Type Memory on Package (MOP) Memory Slot(Free) 0 Max Capacity Max 32GB |
Memory Size 16GB Module Type Memory on Package (MOP) Memory Slot(Free) 0 Max Capacity Max 32GB |
- | - | - |
| Storage |
M.2 slots(Total) 1 M.2 slots(Free) 1 2.5" Drive Bays (Free) 0 3.5" Drive Bays(Free) 0 |
M.2 slots(Total) 1 M.2 slots(Free) 1 2.5" Drive Bays (Free) 0 3.5" Drive Bays(Free) 0 |
M.2 slots(Total) 1 M.2 slots(Free) 1 2.5" Drive Bays (Free) 0 3.5" Drive Bays(Free) 0 |
- | - | - |
| Audio Chipset | - | - | - | Realtek ALC256 | Realtek ALC256 | Realtek ALC256 |
| Audio Type | - | - | - | 2-Channel High Definition Audio | 2-Channel High Definition Audio | 2-Channel High Definition Audio |
| Audio | Realtek ALC256, 2-Channel High Definition Audio | Realtek ALC256, 2-Channel High Definition Audio | Realtek ALC256, 2-Channel High Definition Audio | - | - | - |
| LAN | 2x Intel I226-V | 2x Intel I226-V | 2x Intel I226-V | 2x Intel I226-V | 2x Intel I226-V | 2x Intel I226-V |
| WLAN Version | Wi-Fi 6E+BT | Wi-Fi 6E+BT | Wi-Fi 6E+BT | Wi-Fi 6E+BT | Wi-Fi 6E+BT | Wi-Fi 6E+BT |
| BT Version | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 |
| WLAN | INTEL/AX211.NGWG.NV | INTEL/AX211.NGWG.NV | INTEL/AX211.NGWG.NV | - | - | - |
| M.2 slots(Total) | - | - | - | 1 | 1 | 1 |
| M.2 slots(Free) | - | - | - | 1 | 1 | 1 |
| 2.5" Drive Bays (Free) | - | - | - | 0 | 0 | 0 |
| 3.5" Drive Bays(Free) | - | - | - | 0 | 0 | 0 |
| Mic-in/Headphone-out combo | 1 | 1 | 1 | 1 | 1 | 1 |
| USB 3.2 Gen 2 (10G) Type A | 2 | 2 | 2 | - | - | - |
| USB 2.0 Type A (R) | 2 | 2 | 2 | 2 | 2 | 2 |
| Thunderbolt (R) | 2x (Thunderbolt 4) | 2x (Thunderbolt 4) | 2x (Thunderbolt 4) | - | - | - |
| RJ45 | 2 | 2 | 2 | 2 | 2 | 2 |
| WiFi Antenna | 2 | 2 | 2 | - | - | - |
| Card Reader | 1 | 1 | 1 | 1 | 1 | 1 |
| HDMI out | 1x (v2.1) | 1x (v2.1) | 1x (v2.1) | 1x (v2.1) | 1x (v2.1) | 1x (v2.1) |
| USB 3.2 Gen 2 (10G) Type A | 2 | 2 | 2 | 2 | 2 | 2 |
| HDMI out | - | - | - | 1x (v2.1) | 1x (v2.1) | 1x (v2.1) |
| Power | 120W, ADAPTOR | 120W, ADAPTOR | 120W, ADAPTOR | - | - | - |
| Lock type | Kensington Lock | Kensington Lock | Kensington Lock | Kensington Lock | Kensington Lock | Kensington Lock |
| VESA size | 100 x 100 mm | 100 x 100 mm | 100 x 100 mm | 100 x 100 mm | 100 x 100 mm | 100 x 100 mm |
| Product Dimension (WxDxH) (mm) | 135.6 x 132.5 x 50.1 | 135.6 x 132.5 x 50.1 | 135.6 x 132.5 x 50.1 | 135.6 x 132.5 x 50.1 | 135.6 x 132.5 x 50.1 | 135.6 x 132.5 x 50.1 |
| Product Dimension (WxDxH) (inch) | 5.34 x 5.22 x 1.97 | 5.34 x 5.22 x 1.97 | 5.34 x 5.22 x 1.97 | 5.34 x 5.22 x 1.97 | 5.34 x 5.22 x 1.97 | 5.34 x 5.22 x 1.97 |
| Inside Carton Dimension (WxDxH) (mm) | 205 x 220 x 94 | 205 x 220 x 94 | 205 x 220 x 94 | 205 x 220 x 94 | 205 x 220 x 94 | 205 x 220 x 94 |
| Inside Carton Dimension (WxDxH) (inch) | 8.07 x 8.66 x 3.7 | 8.07 x 8.66 x 3.7 | 8.07 x 8.66 x 3.7 | 8.07 x 8.66 x 3.7 | 8.07 x 8.66 x 3.7 | 8.07 x 8.66 x 3.7 |
| Outer Carton Dimension Standard (WxDxH) (mm) | 500 x 215 x 457 | 500 x 215 x 457 | 500 x 215 x 457 | - | - | - |
| Weight (Net kg) | 0.667 | 0.667 | 0.667 | 0.667 | 0.667 | 0.667 |
| Outer Carton Dimension Standard (WxDxH) (inch) | 19.69 x 8.46 x 17.99 | 19.69 x 8.46 x 17.99 | 19.69 x 8.46 x 17.99 | - | - | - |
| Weight (Gross kg) | 1.682 | 1.682 | 1.682 | 1.682 | 1.682 | 1.682 |
| Net Weight (lbs) | 1.47 | 1.47 | 1.47 | 1.47 | 1.47 | 1.47 |
| Gross Weight (lbs) | 3.71 | 3.71 | 3.71 | 3.71 | 3.71 | 3.71 |
| Liter | 0.826 | 0.826 | 0.826 | - | - | - |
| Pint | 1.75 | 1.75 | 1.75 | - | - | - |
| Regulatory Compliance | BSMI, CB/CE, CEC, ERP lot 3, Energy Star, Epeat Sliver, FCC(Class B), UL(CUL), VCCI | BSMI, CB/CE, CEC, ERP lot 3, Energy Star, Epeat Sliver, FCC(Class B), UL(CUL), VCCI | BSMI, CB/CE, CEC, ERP lot 3, Energy Star, Epeat Sliver, FCC(Class B), UL(CUL), VCCI | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, Epeat Sliver, Energy Star, ERP lot 3, CEC | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, Epeat Sliver, Energy Star, ERP lot 3, CEC | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, Epeat Sliver, Energy Star, ERP lot 3, CEC |
| AC Adaptor | 1 | 1 | 1 | 1 | 1 | 1 |
| Power Cord | 1 | 1 | 1 | 1 | 1 | 1 |
| Warranty Card | 1 | 1 | 1 | 1 | 1 | 1 |
| Quick Guide | 1 | 1 | 1 | 1 | 1 | 1 |
| Operating, Storage Temperature | 0° C ~ 35° C ; -20° C ~ 60° C | 0° C ~ 35° C ; -20° C ~ 60° C | 0° C ~ 35° C ; -20° C ~ 60° C | - | - | - |
| User Manual | 1 | 1 | 1 | 1 | 1 | 1 |
| Operating, Storage Humidity | 0% ~ 85%;0% ~ 90% | 0% ~ 85%;0% ~ 90% | 0% ~ 85%;0% ~ 90% | - | - | - |
| VESA Mount kit | 1 | 1 | 1 | 1 | 1 | 1 |
| Power Switch | 1 | 1 | 1 | 1 | 1 | 1 |
| EAN | 4711377413374 | 4711377413435 | 4711377413442 | 4711377402057 | 4711377402071 | 4711377402088 |
| Model | B206 | B206 | B206 | - | - | - |
| D-MIC | 1 | 1 | 1 | - | - | - |
| Copilot Button | 1 | 1 | 1 | - | - | - |
| TPM module | dTPM | dTPM | dTPM | - | - | - |
| Chassis Lock | Kensington Lock | Kensington Lock | Kensington Lock | - | - | - |
